The primary objective of lighting is to create enough luminance to carry out different actions and operations. The goal of energy efficient lighting is to fulfill the set requirements while minimizing the cost of energy used. Because of the advanced LED-technology used in our products, our customers are able to get ideal lighting conditions and begin to save money, simultaneously.
High quality luminaires requires more than just state of the art LEDs. Our modular products are the result of careful planning regarding many aspects, such as, component and driver selections followed by housing and cooling decisions, just to mention a few.
Our R&D and manufacturing take place within same premises, which means we are in full control of our processes and their quality. Furthermore, as our production lays in our own hands, it is easier for us to design and optimize perfect lighting solutions for each individual customer.
Modular LED luminaire
Moduled replaces traditional lamps, tubes etc.
Applications
- Industry
- Agriculture
- Warehouses
- Other halls
Benefits
Technical specifications
Measurements
Download
- Modular – select the most efficient size
- Low cost of ownership – superior economy during life time of operation
- Durability – robust but light frame with excellent thermal resistance
- Energy efficient – best possible delivered lm/power efficiency
- Cost efficient installation – fast and easy installation to rail, ceiling or wall
- Easy to connect – quick connector, cable or plug
- Dimmable – extra savings with SMART dimming -option
- Operating temperature: -40°C …+50°C
- Lifetime: L90F10 >100.000 h
- Voltage: 230VAC
- Ingress protection class: IP65
- Color temperature: 3000K, 4000K or 5000K
- Color rendering indexi (CRI): >80 Ra
- Luminous efficacy: Up to 137lm/W (led 163lm/W)
- Control options: SMART / Dali
| Model | Lumens (lm) | Power (W) |
|---|---|---|
| MDL401 | 4350 | 38 |
| MDL402 | 8690 | 73 |
| MDL403 | 13040 | 107 |
| MDL801 | 8690 | 73 |
| MDL802 | 17390 | 141 |
| MDL803 | 26080 | 214 |
| MDL1201 | 13040 | 107 |
| MDL1202 | 26080 | 214 |
| MDL1203 | 39120 | 321 |
| MDL1601 | 17390 | 141 |
| MDL1602 | 34770 | 282 |
| MDL1603 | 52160 | 423 |

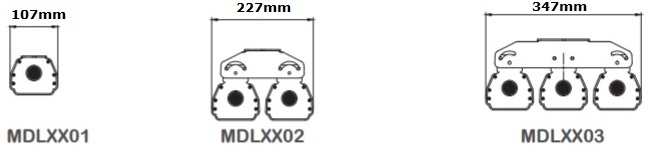

| Measurements | Model | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| MDL401 | 465 | 430 | 380 | |
| MDL801 | 696 | 666 | 610 | |
| MDL1201 | 966 | 986 | 910 | |
| MDL1601 | 1296 | 1266 | 1210 |
Moduled brochure Impressive and cost-effective luminaire
Profiled replaces traditional tubes and lamps. Profiled is an impressive and, above all, cost-effective solution that is well suited for public interiors, such as shops and offices.
Applications
- Industry
- Sports arenas
- Halls and warehouses
- Commercial spaces and offices
Benefits
Technical specifications
Measurements
Download
Elegant design
- Maintenance-free with a four-year warranty
- Robust and light aluminum housing
- Opal cover / Clear lens
- Several installation options
With Profiled, versatile lighting units can be implemented thanks to their modularity. The luminaires can also be connected as part of the object’s DALI or Ledistys SMART control system.
- Operating temperature: -40°C …+50°C
- Lifetime: L90F10 >100.000 h
- Voltage: 230VAC
- Ingress protection class: IP65
- Color temperature: 43000K, 4000K or 5000K
- Color rendering indexi (CRI): >80 Ra
- Luminous efficacy: Up to 137lm/W (led 163lm/W)
- Control options: SMART / Dali
| Model | Luminous Flux Opal Cover (lm) | Luminious Flux Clean Lens (lm) | Power (W) |
|---|---|---|---|
| PRL401 | 4180 | 4620 | 38 |
| PRL402 | 8350 | 9230 | 73 |
| PRL403 | 12530 | 13850 | 107 |
| PRL601 | 6270 | 6930 | 55 |
| PRL602 | 12530 | 13850 | 107 |
| PRL603 | 18800 | 20770 | 162 |
| PRL801 | 8360 | 9230 | 73 |
| PRL802 | 16710 | 18470 | 141 |
| PRL803 | 25070 | 27700 | 214 |
| PRL1001 | 10450 | 11540 | 90 |
| PRL1002 | 20890 | 23080 | 180 |
| PRL1003 | 31330 | 34620 | 270 |
| PRL1201 | 12530 | 13850 | 107 |
| PRL1202 | 25070 | 27700 | 214 |
| PRL1203 | 37600 | 41550 | 321 |
| PRL1401 | 14620 | 16160 | 123 |
| PRL1402 | 29250 | 32320 | 246 |
| PRL1403 | 43870 | 48470 | 369 |
| PRL1601 | 16710 | 18470 | 141 |
| PRL1602 | 33420 | 36930 | 282 |
| PRL1603 | 50140 | 55400 | 423 |

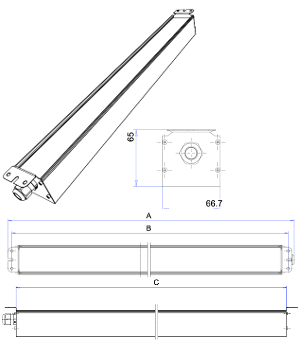

| Measurements | Model | A (mm) | B (mm) | C (mm) |
|---|---|---|---|---|
| PRL401 | 690 | 674 | 590 | |
| PRL601 | 970 | 954 | 870 | |
| PRL801 | 1250 | 1234 | 1150 | |
| PRL1001 | 1530 | 1514 | 1430 | |
| PRL1201 | 1810 | 1794 | 1710 | |
| PRL1401 | 2090 | 2074 | 1990 | |
| PRL1601 | 2370 | 2354 | 2270 |
Moduled® – Luminaire SMART control system
Benefits
- Improves the energy efficiency of the lighting system compared to on/off luminaires
- Faster payback time
- Only the required amount of light, controlled by sensors and/or clock
- Control and dimming of luminaires and groups
- Free increase of luminaires and groups
References
We have carried out hundreds of lighting projects for various industrial, agricultural and hall locations. See pictures of some projects.
